The WB-Core™ Series
Driving Multi-Protocol Evolution
Modern wireless deployments—ranging from long-range unmanned
aerial vehicles (UAVs) to critical smart city infrastructures—are heavily burdened by single-band component limitations.
The WB-Core™ Series serves as the definitive structural foundation ("the Core") for modern RF front-ends. By combining
advanced planar geometries on high-density substrates with meticulous impedance matching, the WB-Core™ family enables a single hardware asset to bridge completely different wireless protocols
simultaneously without thermal degradation or signal attenuation.
Three Architectures. Total Spectrum
Mastery.
The WB-Core™ product line expands into three high-performance, 50-Ohm planar
architectures designed to eliminate multi-antenna complexity. From specialized dual-band links to modular wideband platforms, select the core that powers your application.
| Model Name | Frequency Spectrum | Key Architectural Feature | Primary Applications |
|---|---|---|---|
| WB-Core™ Ultra | 600–1400 MHz | Continuous 80% Fractional Bandwidth | Long-Range FPV (1.2/1.3GHz), ELRS/Crossfire, LoRaWAN, GPS L2/L5 |
| WB-Core™ Duo | 700–1000 MHz & 1700–2200 MHz | Dual-Band Mode | Combined Sub-1GHz IoT & High-Band 4G/5G, Tactical Comms, Public Safety |
| WB-Core™ Modular | 400–3500 MHz | Interchangeable Wings (Modular Geometry) | All-in-One SDR Scanning, RF Lab Testing, Multi-Mission Drone Reconfigurations |
Availability & Technical Support
The premiere model of the lineup, the WB-Core™ 0614-5O, is immediately available for commercial orders,
volume distribution, and OEM evaluation. Full technical specifications, verified S11/VSWR performance data, and STEP 3D files are accessible via our secure documentation portal.

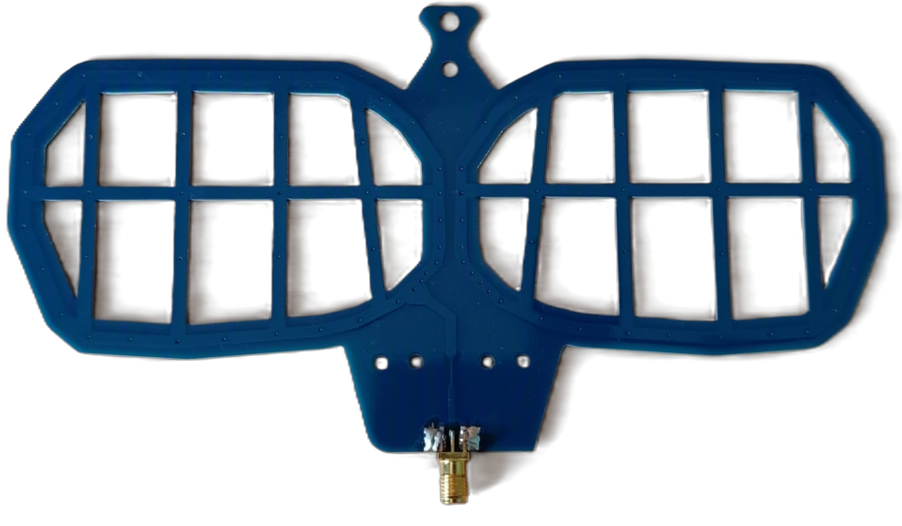

WB-Core™ Ultra (600-1400 MHz)
The Continuous All-Rounder: Features a massive 80% fractional bandwidth with a completely flat gain profile across the entire spectrum.
- Zero Gap: Provides unbroken coverage across critical L-band and UHF frequencies.
- Best For: Long-range FPV drone video feeds (1.2GHz), drone control links (868/915MHz/custom), and aviation tracking (ADS-B).
WB-Core™ Ultra (600-1400 MHz)
The Continuous All-Rounder: Features a massive 80% fractional bandwidth with a completely flat gain profile across the entire spectrum.
- Zero Gap: Provides unbroken coverage across critical L-band and UHF frequencies.
- Best For: Long-range FPV drone video feeds (1.2GHz), drone control links (868/915MHz/custom), and aviation tracking (ADS-B).
